Heasy-Home ®
By merging the technology of loadbearing panels and all the integrated technologies of CSP comes a unique and versatile system for civil and residential construction.
The EASY-HOME® system allows the use and integration of the different elements of the PRECAST and REP® SYSTEM for creating buildings, even of considerable height, totally laid in dry way and completed, where needed, with mechanical structural joints, wet and mixed, along with casting finishing of composite floor slabs according to the performance required by the structures.
Additional typical features of the EASY-HOME® system are loadbearing panels, non-loadbearing panels, precast stairs and insulating balconies.

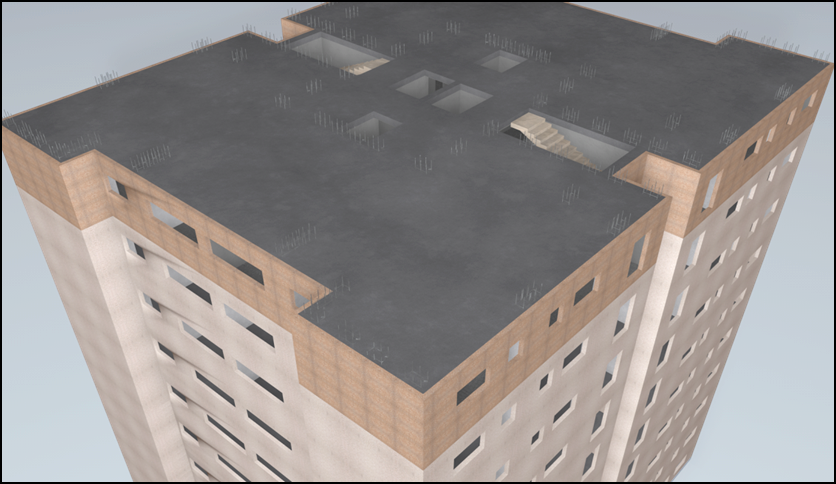

Constructive phases
Realization in situ of the foundation structures with the bars of recovery arranged for the vertical bearing elements.
This phase is similar to what happens for the above ground subsequent scaffolding.
Placement of the precast elements for the construction of vertical structures.
Placement of the steel reinforcement, concrete cast in situ for vertical structures.
Installation of lattice girders beams.
Installation of perimeter panels and casting of any layer of flooring finish.
Installation of lattice girders plates of slab.
Steel reinforcement and casting of the scaffolding horizontal structures.
Assembling of precast stairs.
Easy-Home® typical features
- Composite panels
- Wet joint concrete columns
- REP® beams with concrete case back
- REP® beams with steel plate case back
- Floor plate with lattice girders
- Precast concrete panels
- Loadbearing panels
- Non-loadbearing panels
- Staircases
- Balconies
